2S-6S 45W Fast Charger Power Bank LCD Display PD3.1 Type-c XT30 XT60 Bidirectional 3S 4S 12V BMS RC Battery charging discharging

PD3.1 45W bidirectional fast charging IP2369 2S 3S 4S 5S 6S Li-ion/LiFePO4 Battery Charge-Discharge Module W LCD displays voltage and current power temp Power Banks, Drone Batterie Charger xt30 xt60 2pin

Please refer to the advertising video and usage instructions before purchasing

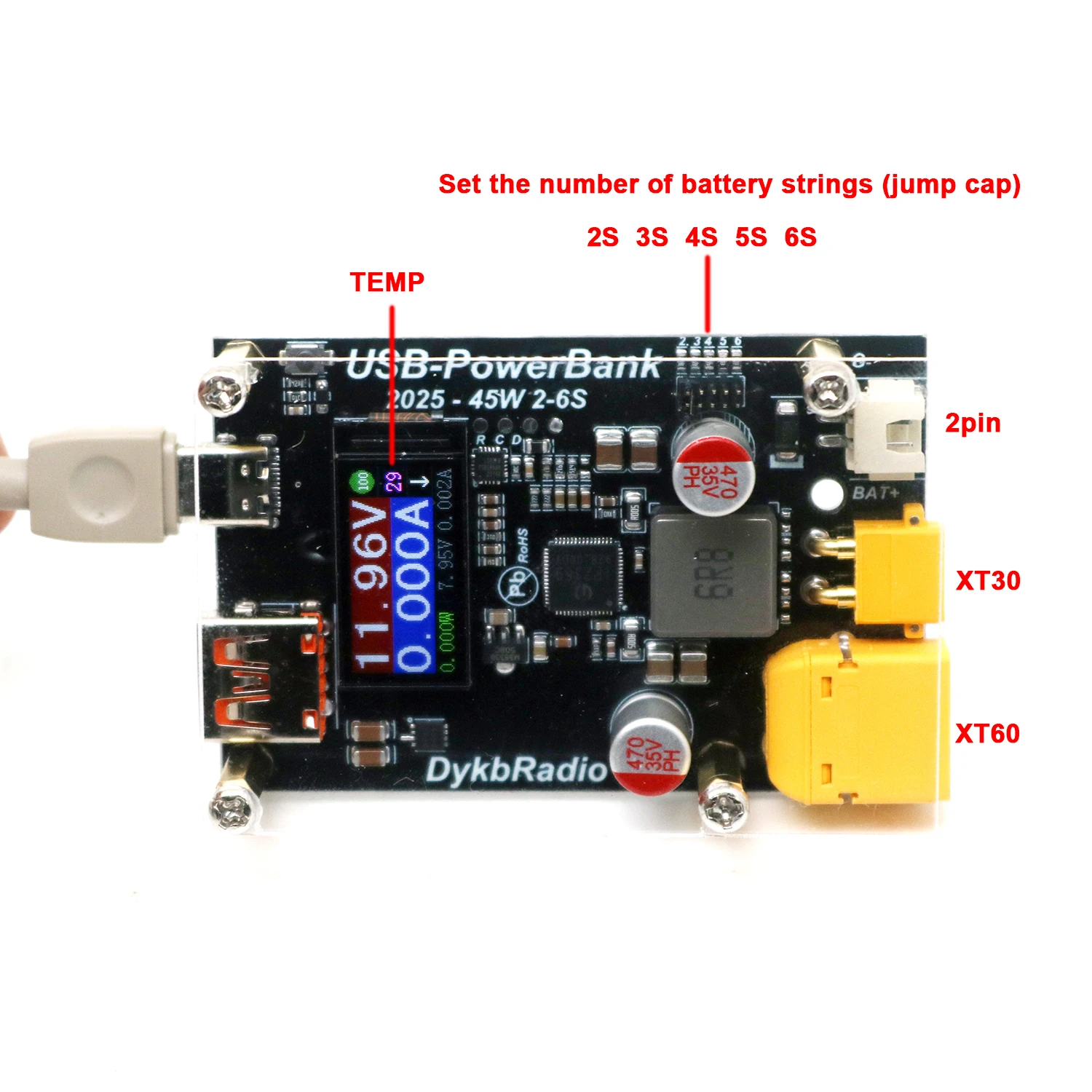

Usage: First, Set the battery strings by jumping cap .Battery interface access module Long press the button to enter the LCD parameter adjustment interface. Set the battery type, string number, and power Short press twice to save and exit Finally, insert the TYPE-C power supply

Factory-default jumping cap 2S ( in PCB ）

User-configurable via jumping cap ：2S 3S 4S 5S 6S

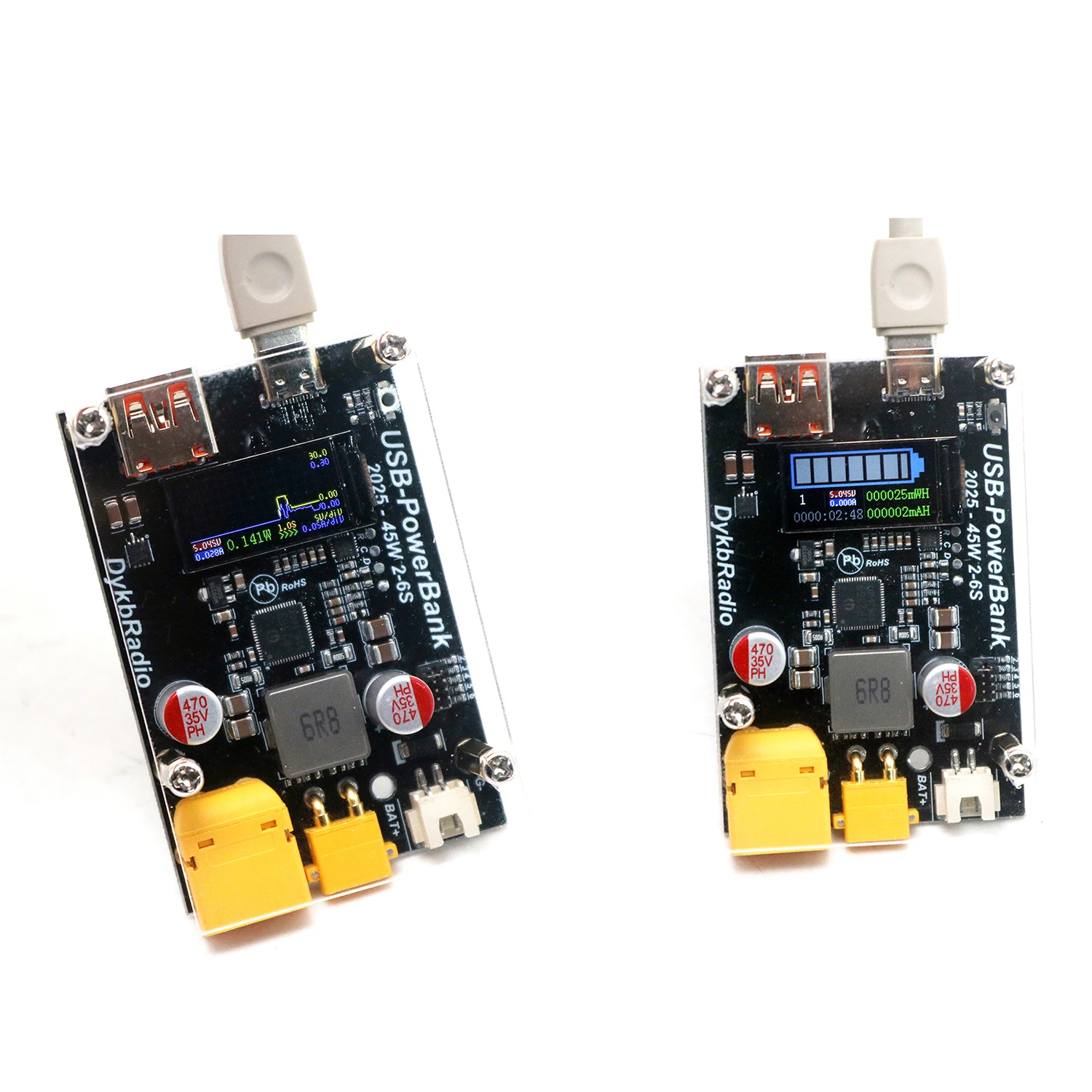

LCD displays parameter adjustment interface :

Short press the button to adjust the value ,Long press to switch parameter categories

SET Max POWER : 20W 27W 30W 36W 45W (Set through the keys)

The number of battery strings needs to be set the sameas the welding points on the back of the module

VSet Battery type setting：Li-ion (NMC) / LiFePO4 4.4V 4.35V 4.3V 4.2V 4.1V 3.65V (Set through the keys)

Key Features:

Wide Compatibility: Supports 2-6 series Li-ion (4.2V/cell) or LiFePO4 (3.6V/cell) battery configurations.

Size : 6×3.2X1.3CM

Fast Charging Protocols:

Integrated Huawei FCP (Input/Output Fast Charge).

Integrated Samsung AFC (Input/Output Fast Charge).

Supports DRP Try.SRC, PD3.1 Output, and QC2.0/QC3.0/QC3.0+ Output protocols.

Type-C Interface:

Input/Output via USB-C, max power 45W.

Comprehensive Protection:

Input over-voltage/under-voltage protection.

Output over-current/short-circuit protection.

Battery over-current, over-discharge, and over-charge protection.

Temperature protection.

Applications:

Li-ion/LiFePO4 battery charging/discharging.

Drone batteries, power banks, electric tool batteries.
